| Some details of mould |
| Name |
plastic injection moldings |
| Mould Material |
NAK80,S136,2316,2738,H13,5CrNiMo,718H,P20,40Cr,60#,45# etc |
| Product Material |
PP,PE,PC,PA,PS,PU,PVC,PMMA,ABS etc |
| Cavity No. |
Single or multi |
| System Of Runner |
Hot runner,Cold runner,Pin-point gate,Submarine gate, etc |
| Ejector Type |
Ejector pin,Air gate,Ejector plate,Hydro-cylinder,etc |
| Term Of Mould Production |
45days- 60days |
| Guaranteed Number Of Cycles |
3,00-500,000 closing |
| Mould Design Software |
Ug,Proe,Solidworks AotoCAD,Moldflow,ect |
Mould Produce Process
1 Product Design Customer send us the product drawing directly or we draw the product
according to the sample,then we send customer the product drawing to confirm
2 Mould Design We'll start to design mould after the product drawing confirmed,then
send customer the mould drawing to confirm
3 Mould Making The mould start to make after the mould drawing confirmed,the process
include prepare steel,rough cut,finish machining,assembly etc
4 Mould Test we'll test the mould after mould assembly,then we'll send customer samples
and video of mould test to confirm
5 Final Process The mould start to polish if the sample is ok,and make grain,nitridation or
chroming if customer required
6 Mould Test We'll test the mould again after polishing,then send customer the final
sample and video of mould test to confirm
7 Mould Packing The mould stard to pack with wooden case after the final sample confirmed,
then the mould will be sent to port and waiting for shipping
Our mold service :
| Quotation |
Fast reply, in 2 working days |
| Pre-production proposal |
We offer professional & practical solution for your investment |
| OEM/ODM service |
We would provide OEM/ODM service as your request |
| Mold process report |
Weekly report, mould processing photos and samples for your checking |
| Approval |
2D/3D mould drawing & mould manufacturing schedule for customer’s approval |
| Mould Design |
According to customer's products drawings or samples |
| Spare parts |
wearing spare parts provided |
| After sale service |
Provide |
| Communications |
Email, Phone, Trade Manager, Msn, SKYPE |
Packaging Details
Plastic molds packing methods:
1-Painted with anticorrosive paint to protect the mold from rust
due to the heavy humidity on sea
2-Wrapped with plastic film to protect the mold from rust due to
the heavy humidity on sea
3-Load on very strong durable polywood boxes
4-Loading container for sea shipping
Remark:since mold it self is very heavy,unless mold is very small
Port
Shanghai/Ningbo/Shenzhen/Other Sea Port In China
Lead Time :
| Quantity(Pieces) |
1 - 1 |
>1 |
| Est. Time(day) |
45 |
To be negotiated |
Product Tags:
|
|

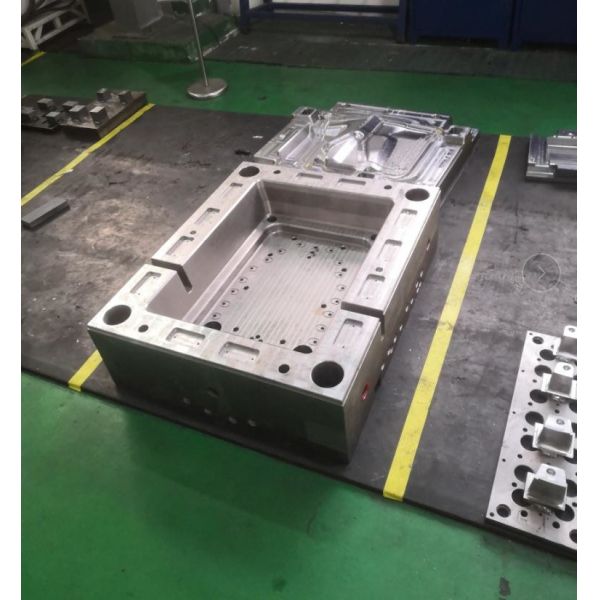

High Precision Auto Injection Molding Machine Hot / Cold Runner Customized Cavity Images
|
